Antonio Carraro Tigre 4000F
Power
38 hp
Production
unknown
Engine
Diesel, 3-cylinder
Transmission
Gear
Weight
2756 lbs [1250 kg]
Drive
4WD
Introduction

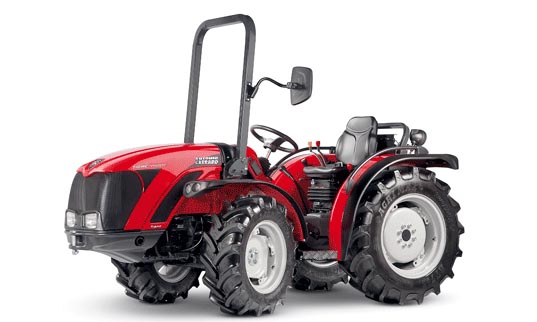

Antonio Carraro Tigre 4000F Compact Utility Tractor
The Antonio Carraro Tigre 4000F is an Italian-manufactured compact utility tractor designed for agricultural and landscaping operations. This machine is engineered for versatility in environments requiring a small footprint combined with mechanical reliability.
Engine and Performance
The tractor is powered by a liquid-cooled Yanmar 3TNV88 3-cylinder diesel engine. It features a 1.6-liter displacement and direct fuel injection, producing a gross power output of 38 hp (28.3 kW). The engine provides a peak torque of 81.9 lb-ft (111.1 Nm) at 1200 RPM, optimized for consistent performance under load.
Transmission and Drivetrain
The drivetrain utilizes a gear-type transmission providing 8 forward and 4 reverse speeds, allowing the operator to select the appropriate gear ratio for varying field conditions. The tractor is equipped with a four-wheel drive system and hydraulic power steering to improve traction and maneuverability in tight spaces.
Hydraulics and Hitch
The hydraulic system operates at a pressure of 2321 psi (160.0 bar) with a pump flow rate of 7.9 gpm (29.9 lpm). The rear hitch is a Category I three-point linkage with a lifting capacity of 2205 lbs (1000 kg). An independent rear PTO, operating at 540 RPM, is standard for powering implements.
Dimensions and Operator Station
With a wheelbase of 48.9 inches and a total weight of 2756 lbs (1250 kg), the machine maintains stability while remaining compact. The operator station includes a two-post folding ROPS to ensure safety while allowing for clearance in height-restricted areas.
Conclusion
The Antonio Carraro Tigre 4000F is a robust utility solution suitable for small-scale farming, maintenance, and specialized agricultural tasks where maneuverability and compact dimensions are required.
Production Information of Antonio Carraro, Tigre 4000F
- Compact Utility tractor
- Built in Italy
| Manufacturer | Antonio Carraro |
|---|
Dimension and Tires Information of Antonio Carraro, Tigre 4000F
| Wheelbase | 48.9 inches [124 cm] |
|---|---|
| Weight | 2756 lbs [1250 kg] |
| Height (ROPS) | 75.2 inches [191 cm] |
| Length | 116 inches [294 cm] |
| Width | 50.2 inches [127 cm] |
| Standard tires (ag) | Front: 7.50x16. Rear: 300/70R20 |
|---|
Engine Specifications of Antonio Carraro, Tigre 4000F
- Yanmar 3TNV88
- Liquid-cooled
- Diesel
- 3-cylinder
| Torque RPM | 1200 |
|---|---|
| Displacement | 100.2 ci [1.6 L] |
| Fuel system | Direct injection |
| Bore/Stroke | 3.46x3.54 inches [88 x 90 mm] |
| Starter volts | 12 |
| Starter | Electric |
| Torque | 81.9 lb-ft [111.1 Nm] |
| Rated RPM | 3000 |
| Rated Power (gross) | 38 hp [28.3 kW] |
Transmission Information of Antonio Carraro, Tigre 4000F
Transmission variants 1
| Type | Gear |
|---|---|
| Gears | 8 forward and 4 reverse |
Mechanical Specs of Antonio Carraro, Tigre 4000F
- Four-wheel drive
- Two-post folding ROPS.
| Steering | Hydraulic power |
|---|
Power Information of Antonio Carraro, Tigre 4000F
| Rear PTO | Independent |
|---|---|
| Rear PTO Type | 540 (1.375) |
Hydraulics Specifications of Antonio Carraro, Tigre 4000F
| Pressure | 2321 psi [160.0 bar] |
|---|---|
| Pump flow | 7.9 gpm [29.9 lpm] |
Three-Point Hitch of Antonio Carraro, Tigre 4000F
| Rear Type | I |
|---|---|
| Rear lift | 2205 lbs [1000 kg] |
Electrical System of Antonio Carraro, Tigre 4000F
| Ground | Negative |
|---|---|
| Battery volts | 12 |
Where it sits
With 38 HP, the Antonio Carraro Tigre 4000F sits between TTR 3800 (36 HP) and Tigrone 5800 (48 HP) in Antonio Carraro's range.
Frequently asked questions
How much horsepower does the Antonio Carraro Tigre 4000F have?
The Antonio Carraro Tigre 4000F delivers 38 HP.
What years was the Antonio Carraro Tigre 4000F produced?
The Antonio Carraro Tigre 4000F was produced in unknown.
What engine does the Antonio Carraro Tigre 4000F have?
The Antonio Carraro Tigre 4000F is powered by a Diesel, 3-cylinder engine.
What transmission does the Antonio Carraro Tigre 4000F use?
The Antonio Carraro Tigre 4000F uses a Gear transmission.
How much does the Antonio Carraro Tigre 4000F weigh?
The Antonio Carraro Tigre 4000F weighs 2756 lbs [1250 kg].
Is the Antonio Carraro Tigre 4000F 4WD?
The Antonio Carraro Tigre 4000F is available in 4WD.
