Antonio Carraro TRH 9800
Power
87 hp
Production
unknown
Engine
Turbocharged diesel, 4-cylinder 16-valve
Transmission
Hydrostatic
Drive
4WD
Introduction

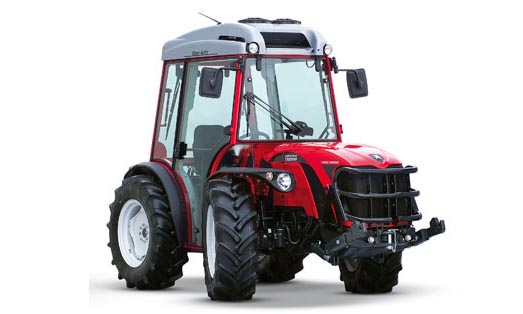

Antonio Carraro TRH 9800 Utility Tractor
The Antonio Carraro TRH 9800 is an Italian-manufactured utility tractor designed for versatile agricultural applications. Built for precision and performance, this machine belongs to the compact utility segment, offering a balance between maneuverability and operational power.
Engine and Performance
The TRH 9800 is powered by a 4-cylinder, 16-valve Yanmar turbocharged diesel engine with a 3.3-liter displacement. It utilizes a direct injection fuel system and is liquid-cooled, delivering a rated power of 87 hp (64.9 kW). The engine generates 211.5 lb-ft (286.8 Nm) of torque at 1850 RPM, providing sufficient grunt for demanding field tasks.
Transmission and Drivetrain
The tractor features a hydrostatic transmission, allowing for infinite forward and reverse speed control across four distinct ranges. This system is paired with a four-wheel-drive chassis, ensuring consistent traction across varied terrain. Steering is managed by a hydraulic power system, and stopping power is provided by hydraulic wet disc brakes.
Hydraulics and PTO
Equipped with a category II rear hitch, the TRH 9800 offers a rear lift capacity of 5,291 lbs (2,399 kg), suitable for a wide array of implements. The independent rear PTO operates at 540/540E speeds, providing flexibility for power-take-off driven machinery.
Dimensions and Operator Environment
The tractor features a 59.2-inch wheelbase and a minimum width of 54.3 inches, making it suitable for narrow-row operations. Standard equipment includes a two-post foldable ROPS for safety. Optional configurations allow for a six-post ROPS canopy frame with a windscreen or the StarLight cab, which includes air-conditioning to enhance operator comfort.
Conclusion
The Antonio Carraro TRH 9800 serves as a reliable utility tractor for farmers and professionals requiring a compact, high-torque machine. Its combination of hydrostatic transmission, Category II hitch capacity, and multiple cabin configurations makes it a flexible choice for specialized agriculture, landscaping, and maintenance operations.
Production Information of Antonio Carraro, TRH 9800
- Utility tractor
- Built in Italy
| Manufacturer | Antonio Carraro |
|---|
Dimension and Tires Information of Antonio Carraro, TRH 9800
| Wheelbase | 59.2 inches [150 cm] |
|---|---|
| Length | 138 inches [350 cm] |
| Width | 54.3 inches (min) [137 cm] |
| Ag front | 250/80R18 |
|---|---|
| Ag front(optional) | 280/85R20 |
| Ag front(optional) | 320/65R18 |
| Ag front(optional) | 300/70R20 |
| Ag front(optional) | 280/85R20 |
| Lawn/turf front | 31x15.50-15 |
| Lawn/turf front(optional) | 9.5R20 |
| Lawn/turf front(optional) | 9.5R20 |
| Ag rear | 250/80R18 |
| Ag rear(optional) | 320/70R20 |
| Ag rear(optional) | 320/65R18 |
| Ag rear(optional) | 280/70R18 |
| Ag rear(optional) | 300/80-15.3 |
| Ag rear(optional) | 300/80-15.3 |
| Ag rear(optional) | 280/70R18 |
| Lawn/turf rear | 31x15.50-15 |
| Lawn/turf rear(optional) | 320/70R20 |
| Lawn/turf rear(optional) | 300/70R20 |
Engine Specifications of Antonio Carraro, TRH 9800
- Yanmar
- Liquid-cooled
- 4-cylinder 16-valve
- Turbocharged diesel
| Rated Power (gross) | 87 hp [64.9 kW] |
|---|---|
| Torque | 211.5 lb-ft [286.8 Nm] |
| Displacement | 202.5 ci [3.3 L] |
| Bore/Stroke | 3.86x4.33 inches [98 x 110 mm] |
| Emissions | Stage 3A |
| Rated RPM | 2500 |
| Fuel system | Direct injection |
| Starter volts | 12 |
| Starter | Electric |
| Torque RPM | 1850 |
Transmission Information of Antonio Carraro, TRH 9800
Transmission variants 1
| Type | Hydrostatic |
|---|---|
| Gears | Infinite forward and reverse (4-range) |
Mechanical Specs of Antonio Carraro, TRH 9800
- Four-wheel drive
- Two-post foldable ROPS. Optional six-post ROPS canopy frame with windscreen. Optional StarLight cab with air-conditioning.
- Hydraulic wet disc brakes
| Steering | Hydraulic power |
|---|
Power Information of Antonio Carraro, TRH 9800
| Rear PTO | Independent |
|---|---|
| Rear PTO Type | 540/540E (1.375) |
Three-Point Hitch of Antonio Carraro, TRH 9800
| Rear Type | II |
|---|---|
| Rear lift | 5291 lbs [2399 kg] |
Electrical System of Antonio Carraro, TRH 9800
| Ground | Negative |
|---|---|
| Battery volts | 12 |
Where it sits
With 87 HP, the Antonio Carraro TRH 9800 sits between TX 7800S (71 HP) and SRX 10400 (95 HP) in Antonio Carraro's range.
Frequently asked questions
How much horsepower does the Antonio Carraro TRH 9800 have?
The Antonio Carraro TRH 9800 delivers 87 HP.
What years was the Antonio Carraro TRH 9800 produced?
The Antonio Carraro TRH 9800 was produced in unknown.
What engine does the Antonio Carraro TRH 9800 have?
The Antonio Carraro TRH 9800 is powered by a Turbocharged diesel, 4-cylinder 16-valve engine.
What transmission does the Antonio Carraro TRH 9800 use?
The Antonio Carraro TRH 9800 uses a Hydrostatic transmission.
Is the Antonio Carraro TRH 9800 4WD?
The Antonio Carraro TRH 9800 is available in 4WD.
